LTF-A817AB-140T TIR LED Light bar

Dimensions:Length: 55" x Width: 11.8" x Height 1.8"

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

 Warning vehicle LED 55" Tir Light bar from China (LTF-A817AB-140T)

  Our Warning Light Bars are designed for those who need high output lights,with the simple function.  They are a great solution for those who need high intensity light output with out hurting their pocket books.

1. Summary

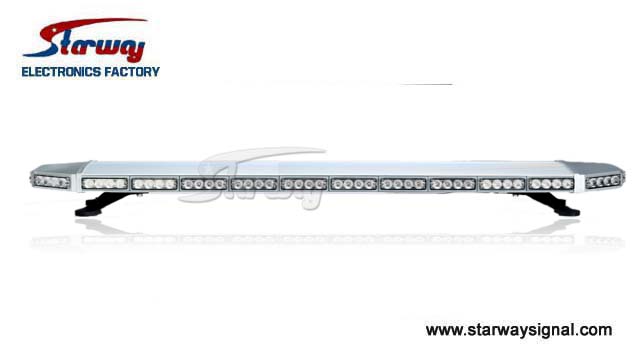

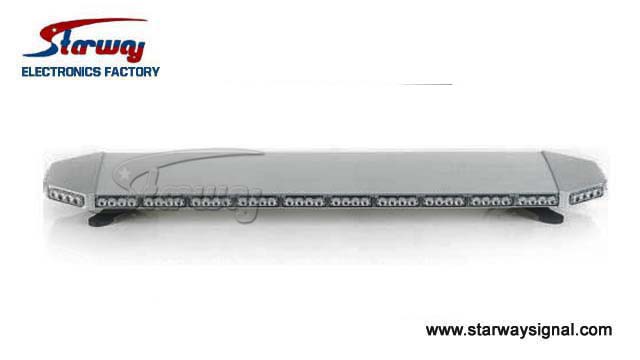

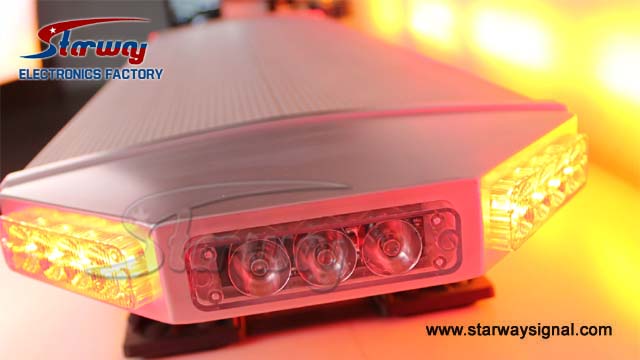

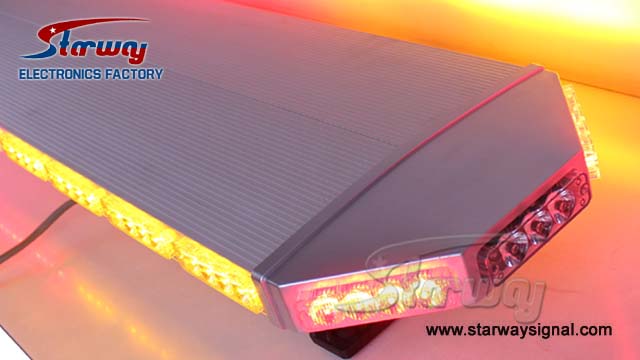

 This Stawray 55" TIR LED Light bar is a 360-degree lighting system with extremely low amperage draw.  Using our signature low profile design, it is engineered to provide superior aerodynamics and greater fuel savings than other light bars. Each light bar contains 26 GEN III TIR modules. In total, there are 104 1 Watt LEDs. Trust us when we say this light is bright. So bright, that it is noticeable in direct sunlight.
  This Starway 55" TIR LED Light Bar comes standard with a 15-foot cord and Control Box. What's special about the control box  is that it contains a flash pattern indicator, which shows the user the flash patterns the lightbar is doing from inside the vehicle.The light bar is very easy to install and comes with mounting hardware for roof mount. There is no need to drill unnecessary holes into your vehicle to install this Light Bar. The light can also be hardwired to your existing switch box.  Fully encapsulated and fully waterproof, all LED modules and flasher boards are epoxy coated, keeping it safe from all weather conditions. Included 16 primary warning modules, 6 Traffic Advisor modules, Take Down Lights and Alley Lights. White modules can be left on steady burn, flashing and on the OFF position.

2. Features
●  Sleek design with clear lens for stealth look
●   Full function switchbox included
●   Includes wire harness for easy installation
●   30 Selectable flash patterns

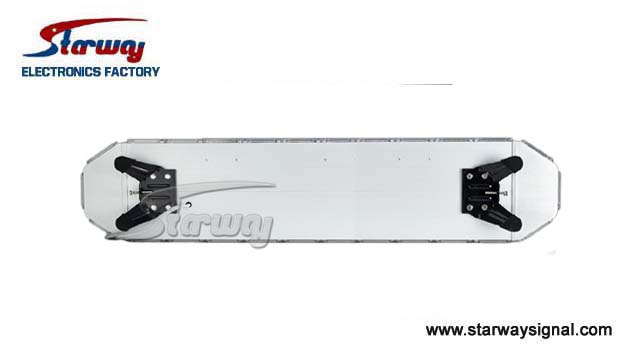

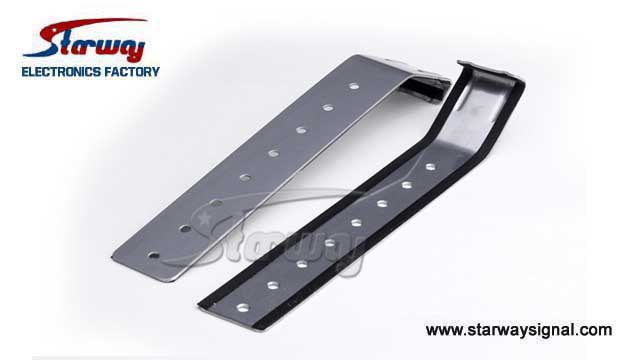

●   Gutter Brackets included for mounting
●   Extreme performance in a package under 2" hight
●   Increased vehicle fuel efficiency
●   Integrated Traffic Direction feature
2. Specifications
●    Voltage: 12VDC
●    Self contained internal flasher
●    15' cable from light bar to switchbox
●    Generation III LINEAR LED technology
●    Fully encapsulated, fully weatherproof.
●    4 LEDs in every module. (104 LEDs total).
4. Dimensions
Length: 55" x Width: 11.8" x Height 1.8"
