LTF-A817AB-120L LED Linear Lightbar

Dimensions:Length: 48" x Width: 11.8" x Height 1.8"

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote
1.  Summary

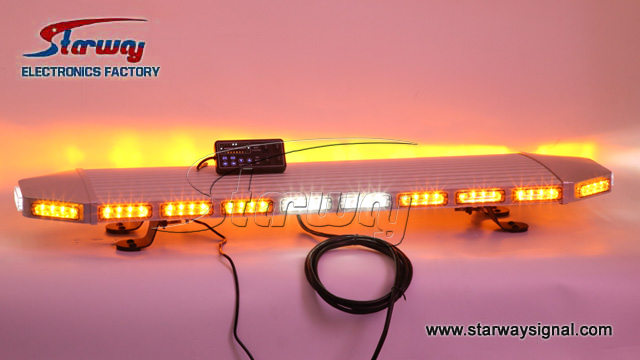

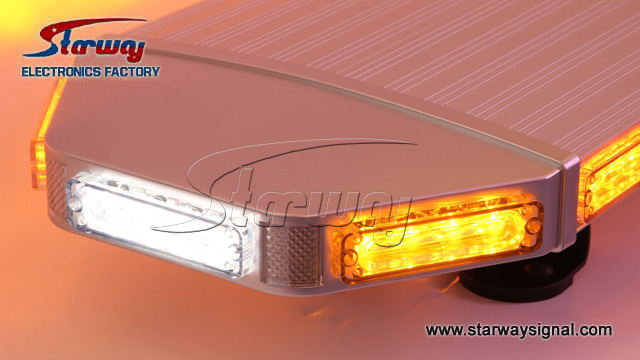

  The  Starway LED Linear Lightbar  is a 360-degree  lighting system with extremely low amperage draw.  Using It's signature low  profile design, it is engineered to provide superior aerodynamics and greater  fuel savings than other light bars. Each light bar contains 22 GEN III LINEAR  modules. In total, there are 132 1 Watt LEDs. Trust us when we say this light is  bright. So bright, that it is noticeable in direct sunlight.

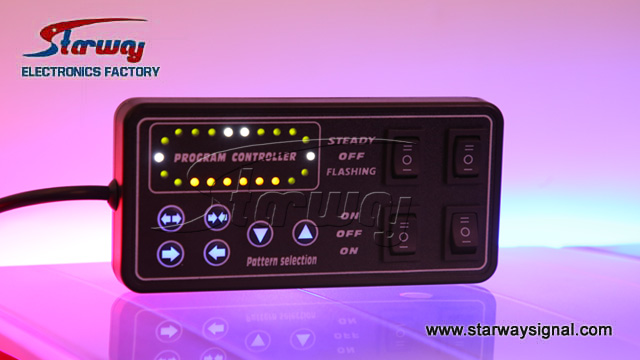

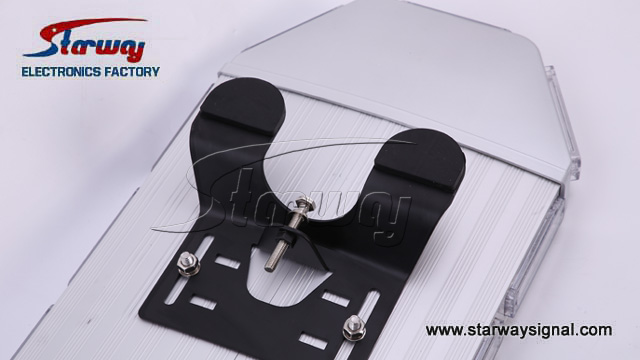

  The Starway LED Linear Lightbar comes standard with a  15-foot cord and 9 Button Control Box. What's special about the control box is  that it contains a flash pattern indicator, which shows the user the flash  patterns the lightbar is doing from inside the vehicle. The light bar is very  easy to install and comes with mounting hardware for roof mount. The Light bar can also be hardwired to your  existing switch box.  Fully encapsulated and fully waterproof, all LED modules  and flasher boards are epoxy coated, keeping it safe from all weather  conditions.
Included are 14 primary warning modules, 4 Traffic  Advisor modules, Take Down Lights and Alley Lights. White modules can be left on  steady burn, flashing and on the OFF position.
  Emerency Light Bars are designed for those who need  high output lights, with the simple function.  They are a great solution for  those who need high intensity light output with out hurting their pocket  books.
2.Features
1) Sleek design with clear lens for stealth  look;
2) Includes wire harness for  easy installation;
3) 30 Selectable flash  patterns;
4) Full function 9  Button switchbox included;

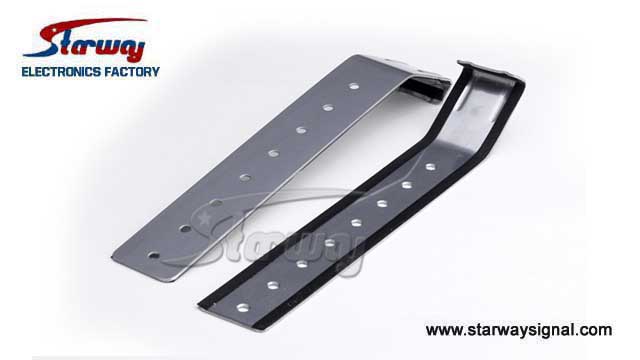

5) Gutter  Brackets included for mounting;
6) Extreme performance in a package under 2" high;
7) Integrated Traffic Direction  feature .
3.  Specifications
1) Voltage: 12VDC
2) SAE Rated
3) Generation III LINEAR LED technology
4) Self contained internal  flasher
5) 15' cable from light bar to  switchbox
6) Fully encapsulated, fully  weatherproof.
7) 6 LEDs in every  module. (132 LEDs total).
4.Dimensons

Length: 48" x Width: 11.8" x Height  1.8"
