LED3530 LED Light bar

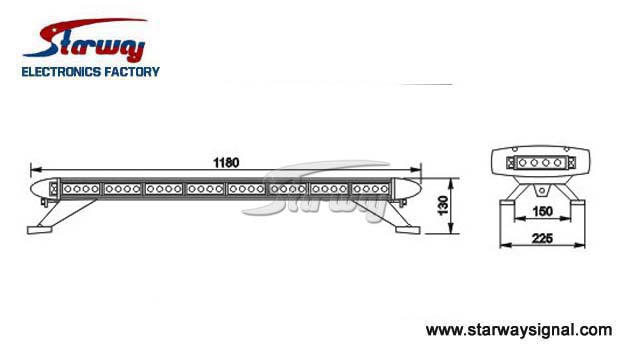

Dimensions：Dimensions:1180x226x130mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote

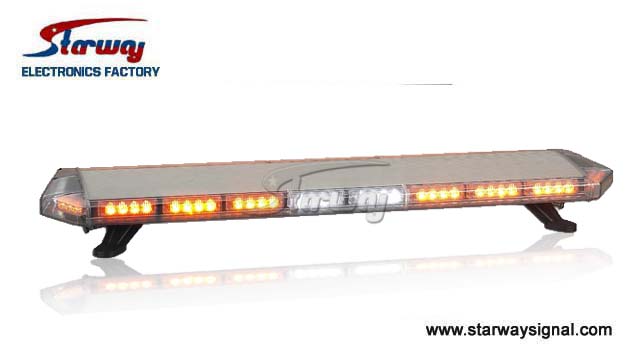

This Sarway Emergency LED Lightbar (LED3530) adopts double-layer aluminum alloy boards structure, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the light bar has good sealing and waterproof. A lot of LED lights are distributed shapely and use high power LED lights let it give out strong flash light from each direction. And it has advantage with high brightness and low power waste. It has 15 kinds flash pattern and six cruise lights. It can be installed on all kinds of special vehicles. Even in extremely complicated, circumstances, it can transmit emergency signal correctly.
2. Specifiation
|
Model |
LED3530 Emergency LED Lightbar |
|
Work voltage |
DC12V/DC24V |
|
The max. lightened bound |
> 800LX |
|
Environment |
-40 ℃~ +50 ℃ |
|
Waste currant |
10A (max) |
|
Flashing lights power |
120W |
|
Cruise lights power |
38W |
|
Flash frequency |
15 kinds |
|
Light type |
LEDS |
|
Dome |
Imported high-strength PC material with excellent lustrous and high penetrating-for ability. |
|
Base |
Aluminum alloy material with high strength. |
|
Bulb |
LED light With the functions of high brightness fine stability ,low energy consumption. Adopting high luminosity LEDs as front light source Backlight outfits six programme light . |
|
Net Weight |
12KGS |
3.Flash Mode
|
|
FLASH PATTERN
|
Remark
|
|
1
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Double
|
|
2
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Quad
|
|
3
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Quint
|
|
4
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Mega
|
|
5
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Ultra
|
|
6
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Single-Quad
|
|
7
|
¤ ¤ ● ● ¤ ¤ ● ●
|
Single H/L
|
|
8
|
●←●←●←¤ ¤→●→●→●
|
Turn aside
|
|
9
|
● ¤ ● ¤ ● ¤ ● ¤
|
Quad(separate)
|
|
10
|
● ● ● ● ¤ ● ● ●
8 6 4 2 1 3 5 7
|
Jump
|
|
11
|
● ● ● ● ¤ ¤ ¤ ¤
|
Relay
|
|
12
|
¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤
|
Speedup(all)
|
|
13
|
●←●←●←●← ●←●←●←¤
|
Turn left
|
|
14
|
¤→●→●→●→ ●→●→●→●
|
Turn right
|
|
15
|
¤ ¤ ¤ ¤ ● ● ● ●
|
Speedup(split)
|
4.Packing Information
| Packing Size | 1220x310x140mm |
| Qty/CTN | 1PCS |
