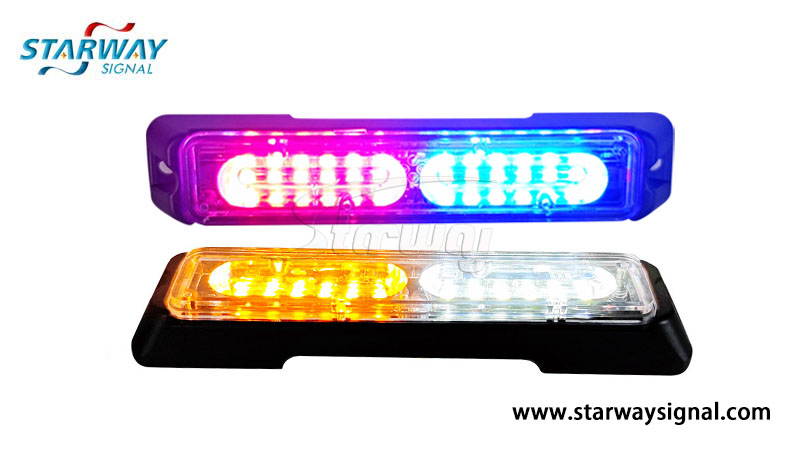

E12 Warning Grill LED Light
Dimensions： 4.9”(L) x 1.18”(W) x1/2” (H)
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
LED Grille Lights and Surface Mounts are a versatile way to customize your personal vehicle or emergency fleet. From the
compact series to the rectangular Surface Mounts – we carry a variety of shapes and sizes to give you the ultimate flexibility
when outfitting your vehicle.

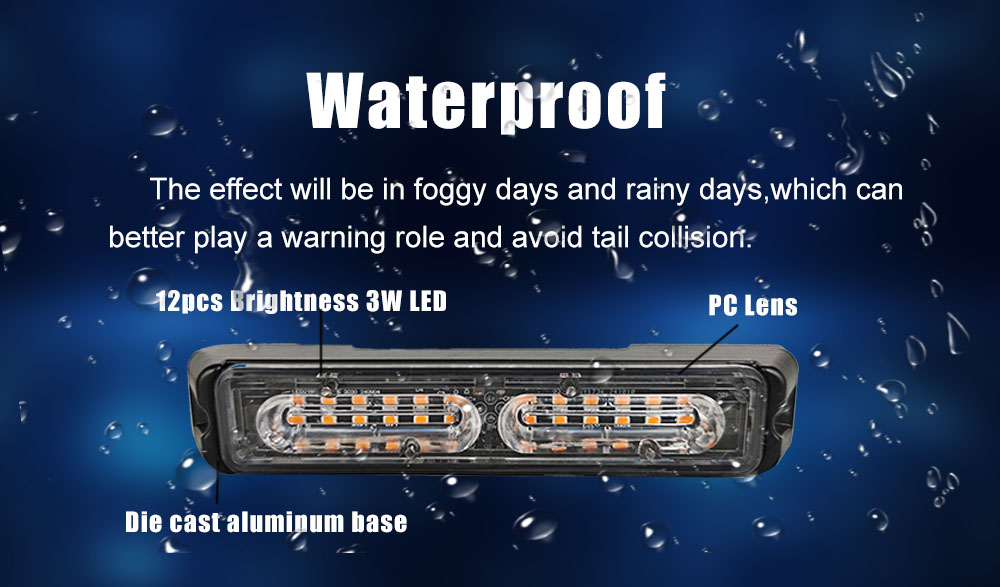

Features1）Weather and vibration resistant .
2）Pre-programmed multiple flash patterns
3）Alternating or simultaneous flashing available
4）Generation III high power LED, super thin LED surface mounting lights for emergency vehicles
5）Emergency led strobe lights
Description
1）Working Voltage : 12 - 24 VDC
2）Total 12 pcs of 3W LED
3）Color available in Amber, blue, red, white, green
4）Mounting by 2 screws
5）Product size 4.9”(L) x 1.18”(W) x1/2” (H)

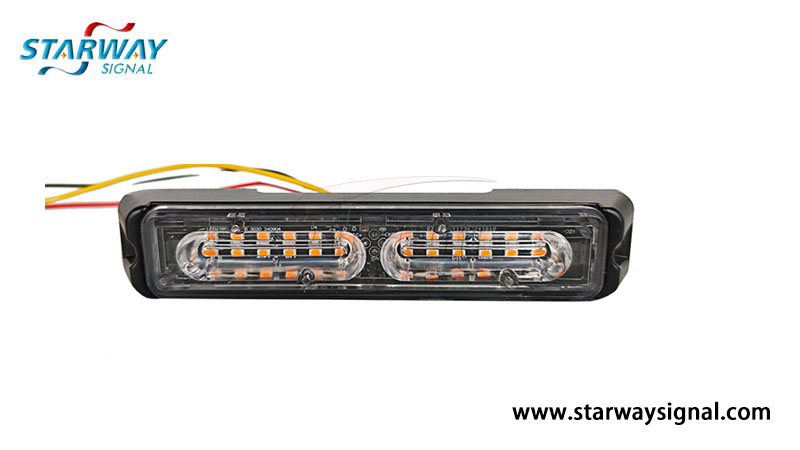

Wire function
1.Red Wire: To + VDC (fuse @3A)
2.Black Wire: Chassis Ground
3.White Wire: Wig Wag function
4.Amber Wire:
◆ Pattern selection
-To select flash pattern, apply Amber wire to Red
-Less than 1 second for next pattern -2 seconds for steady burn
◆ Synchronization
-Connect Yellow wires of all heads together for Synchronization -All heads must be on same flash pattern to be able to sync
4.9”(L) x 1.18”(W) x1/2” (H)
