1.Features
 ●   Powered by 12V
 ●   Life Span of 100,000 hours
 ●   11 feet of cable provided
 ●   16 available flash patterns
 ●   Anti-glare coating on outer lens
 ●   Runs on Generation 3 LED lighting
 ●   8 modules with 8 linear LEDs in each
 ●    Includes control box with On/off switch
 ●    Includes L-shaped brackets for mounting
 ●   Flash pattern & Directional changer included
 ●   Dimensions: 100cm L x 10cm W x5cm H
2.Specifiation

Model	LTF4C408 Starway Police Warning LED  Bar & Traffic Advisor
Work voltage	DC12V/DC24V
Type	Traffic Signal
Power of one light head	5.4W (for color: blue, clear, green);3W (for color: red, amber)
LED power	0.5W
LED headlight quantity	8pcs
Light Sources	LEDS
Warning light bar color	Red/Blue/Amber/Clear/Green

4. Mountiong of Emergency LED Directional Lightbar

Mark the areas where the mounting holes are to be drilled, then drill these holes, and use bolt and nut mount the light on the mounting surface of the vehicle. Mount the controller on the place where easy to control, then plug the power supply wires with controller.

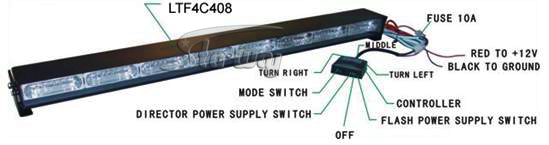

5.Wiring of Emergency LED Directional Lightbar
Connect the main wires red and black to the strong battery (red to +, black to - ). Then turn on switch to work the light.

100cm L x 10cm W x5cm H

Download Instruction Manual
