LED3500 Warning Sreamlined Lightbar

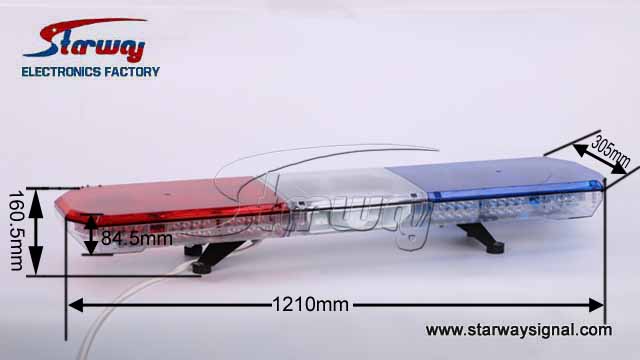

Dimensions:Packing Size:1220x310x140mm Qty/CTN: 1PCS

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

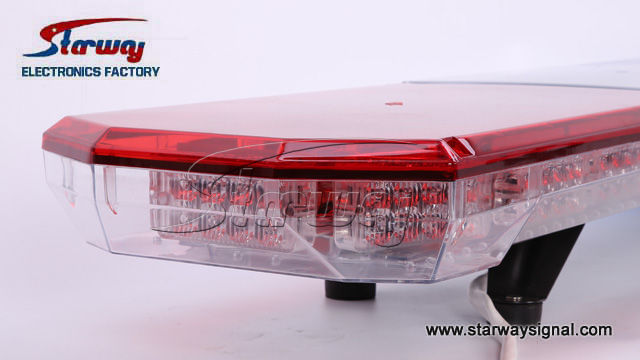

LED3500 Warning Sreamlined Lightbar

--    The rated work voltage: DC12V (range DC10.8V~13.8 V)

--     The length of the light bar: 1.2m

--     The max. lightened bound: > 800LX.

--     The environment temperature: -40 ~ +50 .

--     Waste currant: 10A(max)

--      Flashing lights power: 81.8W

--      Left alley light power: 8.4W

--      Right alley light power: 8.4W

--      Front lights power: 8.4W

--      Direct lights power: 50.4W

--     24 inches-67 inches length

--     Voltage: 12V or 24V

--     12ft cable from light bar to controller box

--     Colored LED Modules with Clear Lenses(DOME)for choose RED/WHITE/AMBER/GREEN/BLUE

--     New 20% brighter LED modules with 4 LEDs pure 1 Watts LED

--     Ultra slim profile with clear lens for a stealth look

--     Arrow stick advisor on the back

--     Independently controlled alley lights, Taken down lights and  traffic advisor .

--      Fully encapsulated, Fully weatherproof and easy installation

--     .Includes universal Gutter Brackets and LED flash pattern indicator of switchbox

 --    25 Flash patterns

  Steady burn

  Single flash Alt

  Clock flash sides to middle

  Double clock flash sides to middle

  Triple flash half left-right

  Accelerated flash half left-right

  Half left-right quad, all flash

  Half left-right single ,all hex flash

  Quad flash Alt

  Clock triple flash left-right

  Clock triple flash right-left

  All triple flash

  All quint flash

  All speedup flash

  Single flash half left-right

  Pro-circle double flash

  Con-circle double flash

  Left clockwise right anticlockwise quad flash

  Left anticlockwise right clockwise quad flash

  Left steady burn right single flash

  Left single flash right steady burn

  Double slow 15 single flash ,accelerated quad flash

  Double slow 6 single flash, accelerated 15 flash


Packing Size:1220x310x140mm Qty/CTN: 1PCS
