LTF-A815AB-2T Police Vehicle LED Lightbar

Dimensions:Length: 48" x Width: 11.8" x Height 2.35"

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

 Starway Warning LED Lightbars

1. Summary

This Starway Warning LED light bar is made of a lot of high brightness LED lights. it has advantage with high brightness and low power waste and long use life etc.. The light bar has good looking shape and stronger against impulse capability, and it not easy to lose color or get aged. The light bar has many modes function offer to choose, and we can design according to your demands.no extra cost about the patterns.It can be installed on all kinds of special vehicles.

This Starway Warning DUAL TIR LED Lightbar is a 360-degree lighting system with extremely low amps. Using our own low profile design, it provides  superior aerodynamics and greater fuel savings than other light bars. Each light bar contains 22 GEN III TIR modules. In total, there are 176 1 Watt LEDs.
The 48" DUAL TIR LED Light Bar comes with a 15-foot cord and 9 Button Control Box. also we can offer you special switch box with LED indicator , that 's very popular in the current market , all of switches are programmed  ,which shows the light bar flash patterns from inside the vehicle.

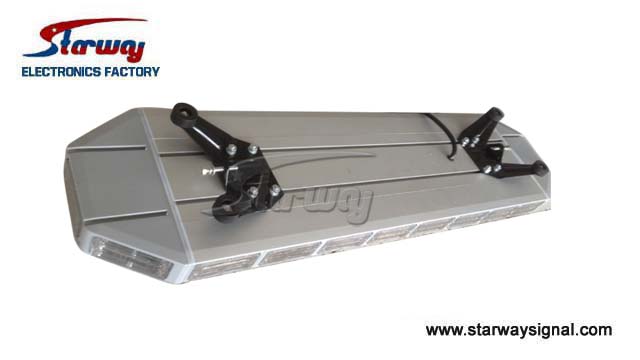

This Starway Warning LED light bar is very easy to install and comes with mounting hardware for roof mount. There is no need to drill unnecessary holes into your vehicle to install this Light Bar. The dual lightbar can also be hardwired to your existing switch box.  Fully encapsulated and fully waterproof, all LED modules and flasher boards are epoxy coated, keeping it safe from all weather and moisure conditions.
This Starway Warning LED lightbar  included 12 primary warning modules, 6 Traffic Advisor modules, 2 Take Down Lights and 2 Alley Lights. Primary warning lights are working in 16 flash patterns , 6 traffic advisor modules are working in 3 flash patterns ( left to right ,right to left ,middle to both sides) , Takedown and alley can be flashing and steady burn . All of these functions above are controlled by independent switches .
Super think height only 2.35", yes, you don't mistaken the height that 's just 2.35" ,superior thin !!! It will make the light bar become much more streamlined and more brighter and far bright .

 2. Features

●  Voltage: 12VDC

●  Colors  Amber, Blue, Red, Red/Blue and More
●   8 LEDs in every module. (176 LEDs total)
●  16 Selectable flash patterns
●  15' cable and Self contained internal flasher
●   Fully encapsulated, fully weatherproof .
●   Sleek design with clear lens for stealth look
●   Includes wire harness for easy installation
●   Gutter Brackets included for mounting
●   Generation 4 TIR LED technology
●   Installation : Fixed on the car with the screws
●   Perfect for police fire EMS and construction vehicle lighting and airforce .

3. Specifiation

Model
LTF-A815AB-2T Starway Emergency LED Light bar

Voltage

DC12V

Type

Traffic Signal

Environment

-40 ℃~ +50 ℃

Lens material

polycarbonate(PC)

Dome material

Aluminum alloy

Bracekt material

Stainless

Installation:

Screws

Light type

LEDS

LED total 176 LEDs
Primary warning modules 12
Traffic Advisor modules 6
Take Down Lights 2
Alley Lights 2

Color

Amber, Blue, Red, Red/Blue and More

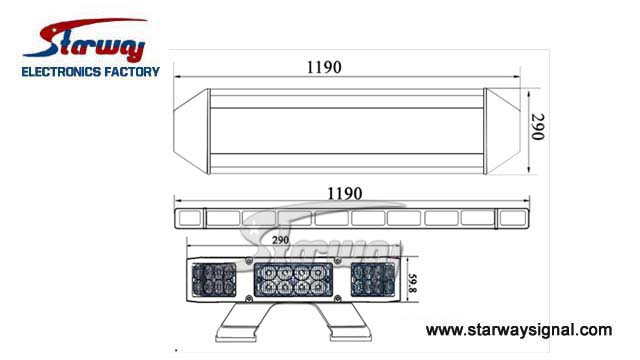

Dimensions

Length:48" * Width: 11.8" * Height 2.35"

 4.Note

   If the this Starway LED Warning light bar can not work, please check the main fuse inside the cigar plug.

Length: 48" x Width: 11.8" x Height 2.35"
