SW-B2120 LED Light bar

Dimensions:Dimensions:21.4" L X 3.41" W X 3.09"

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

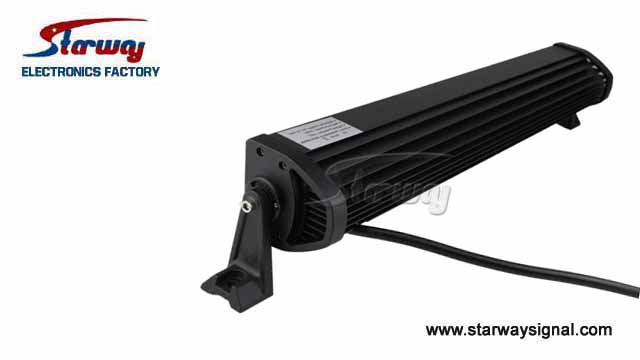

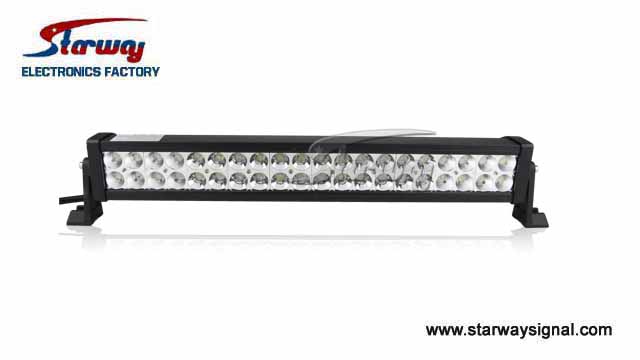

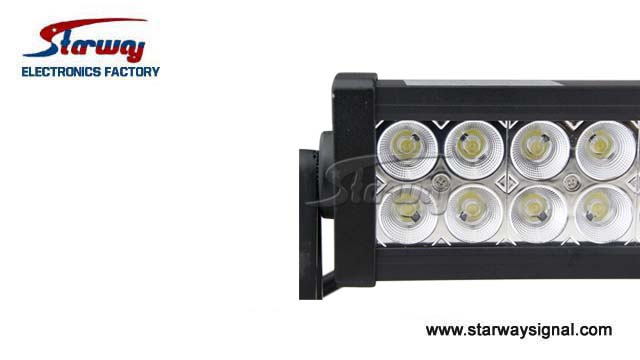

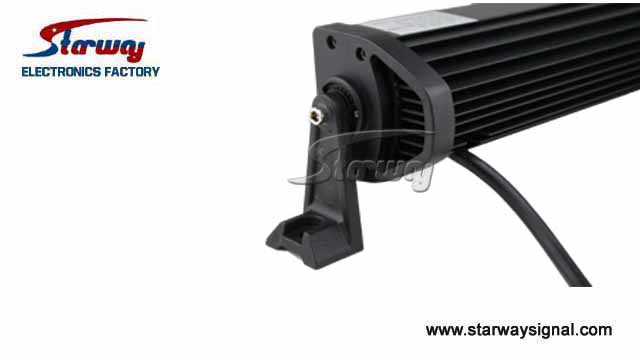

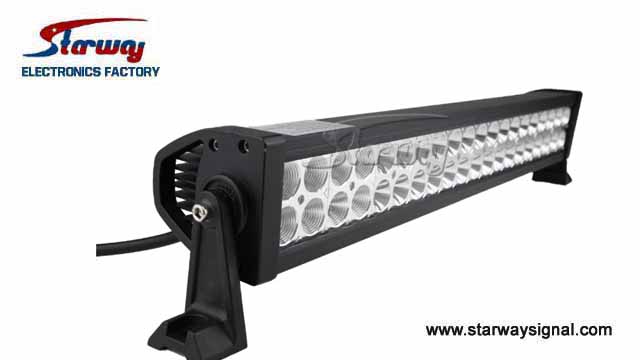

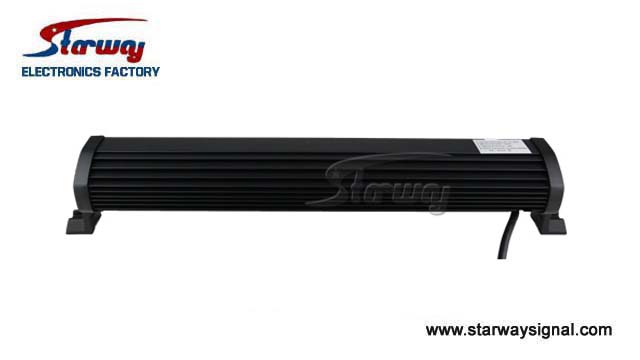

21.4 inch 120W 40pcs LEDS Off road LED light bars(SW-B2120)


1.Product Feature
●   The appearance of fine craft and easy to install brackets.

●   Different sizes to choose from installed in different locations.
●   Different light pattern from flood beam and spot beam.
●   Long life: more  than ordinary advanced LED light bulbs, more than 30000 hours life
●   Aluminum casing, shock-proof waterproof better.
●   Light perception: a  softer light to prevent glare.
●   Waterproof and anti-corrosion: it can in  the rain or harsh environments.
●   Lumen is 90-120LUMEN / W, much higher  than ordinary halogen 20-30LUMEN / W.

●   Wide  operating voltage range: it can apply to different types of trucks,cars,and  other vehicles.
●   LED light bars are widely applied to trucks,cars,ships,and other different  vehicles.


2.Product  Description
●   LED Power: 120W
●   Operating Voltage: 10-30V DC
●   Waterproof rate: IP  67
●   40pcs*3w high intensity LEDs
●   Current draw 8A @  12V,9.8A@24V
●   Optional Color: Black,  White
●   Color Temperature: 6000K
●   Material: Diecast aluminum  housing
●   Lens material: Toughed glass

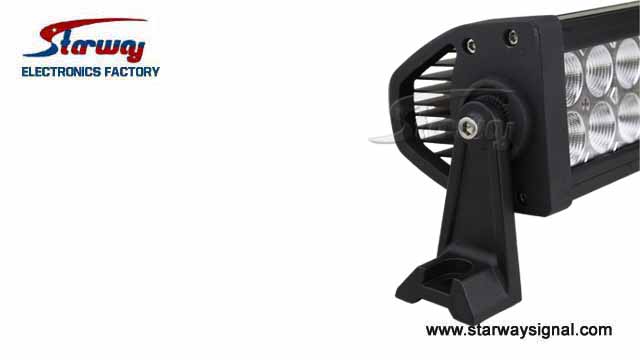

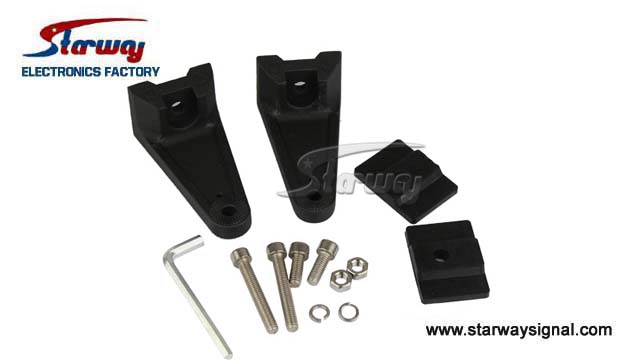

●   Mounting Bracket: Alu firm  bracket
●   Opitonal Beam: Flood beam pattern(60 degree).Spot beam pattern(30  degree)
●   30000 hours above life time
●   Dimensions:21.4" L X 3.41" W X  3.09"


Dimensions:21.4" L X 3.41" W X 3.09"
