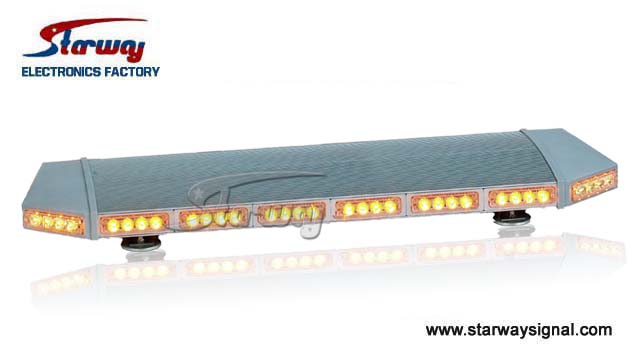

LTF-A900AB-90 LED Mini Light bar

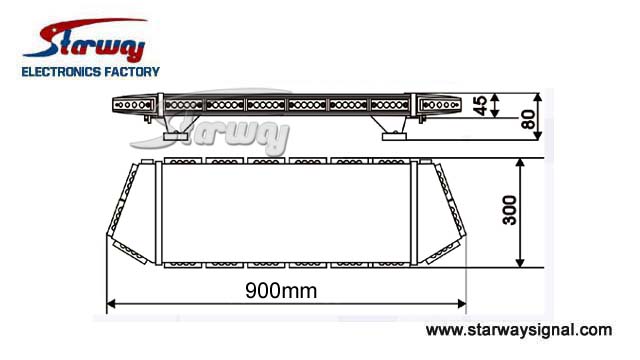

Dimensions：900x300x130(45)mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
LTF-A900AB-90 Starway LED Warning Mini light bars for Police Construction, EMS
1.Specifiation
|
Model |
LTF-A900AB-90 LED Mini Light bar |
|
Work voltage
|
DC12V/DC24V
|
|
Length
|
90cm
|
|
The max. lightened bound
|
> 800LX
|
|
Environment
|
-40 ℃~ +50 ℃
|
|
Life Span
|
100,000
|
|
Light type
|
LEDS
|
|
Dome
|
Imported high-strength PC material with excellent lustrous and high penetrating-for ability.
|
|
Base
|
Aluminum alloy material with high strength.
|
|
Size
|
900x300x130(45)mm
|
2. Installation of the warning light bar
● Adsorb the light bar on the roof of the vehicle. Then according the color, plug the six wires one by one to the controller, and make strict insulation step to it.
● After checking, then insetting the cigar cord to the cigar jack of the vehicle. turn on the switch to working the lightbar.
3. Note
3. Note
The Emergency LED Mini light bar don't work, please check the main fuse in inside the cigar
900x300x130(45)mm
