LTF2-A58AB Strobe Lightbar

Dimensions:Dimensions : 580x300x135mm

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

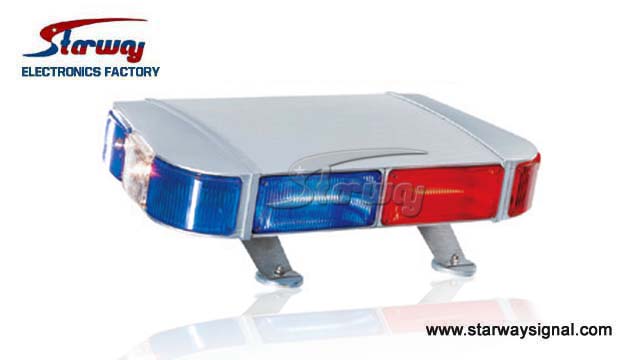

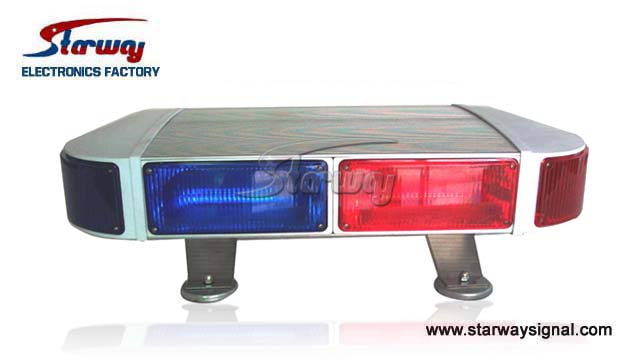

LTF2-A58AB Starway Strobe Mini light bar for Police ,Emergency Ambulance ,Fireand Special Vehicles

1. Summary

This Strobe Mini light bar (LTF2-A58AB Strobe Lightbar)  adopts double-layer aluminum alloy boards structure and sector design, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the caution light has good sealing and water-proof. Several explosive flashlight tubes are distributed as a ring and give out strong flash from each direction. Even in extremely complicated, circumstances, it can transmit emergency signal correctly. The controller of the Strobe Mini light bar can choose several modes to flash the light.
2. Features
●    100,000 hour life span
●    Weather-proof housing
●    Solid strobe lights in the front, rear and sides for maximum warning power
●    High visibility rapid flash pattern rapid alternating flashers in front & back for maximum visibility .
●    2 clear alley lights
●    Magnetic mounts and Bulit in Cigarette plug
●    12-foot cord connects directly to the battery .
●    2 Alley lights, each controlled separately with a 3 button control box .

●    Perfect for police fire EMS and construction vehicle lighting and airforce .

3. Specifiation

Model
LTF2-A58AB Strobe Lightbar
Voltage
DC12V/DC24V
The max. lightened bound
 > 800LX
Environment
-40 ℃~ +50 ℃
Waste currant:
6A(max)
Power
110W
Light Sources
Strobe Tubes
Material
Aluminum alloy board
Color
Red/Blue/Amber/Clear
N.W/G.W
7.5KGS/9KGS

4.Packing Information
Packing Size
680x350x225mm
Qty/CTN
1PCS

5.Installation of the warning Mini light bar
a).Adsorb the Mini light bar on the back bodywork. After installed, the two main electrical wires inset the capacitor (red to +, black to -), and the cores plug inset the back of the controller. Then working.
b). After checking, insetting the electrical switch, turn on the switch that on the controller, then beginning to work.

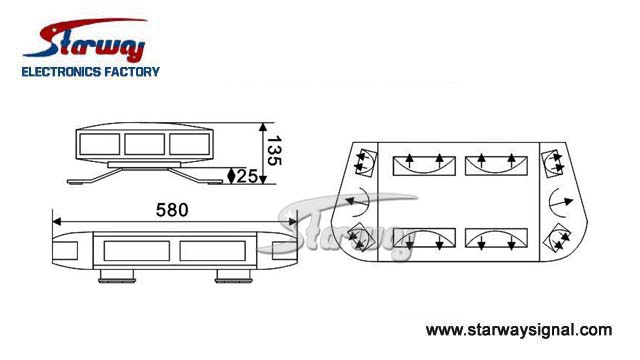

Dimensions : 580x300x135mm
